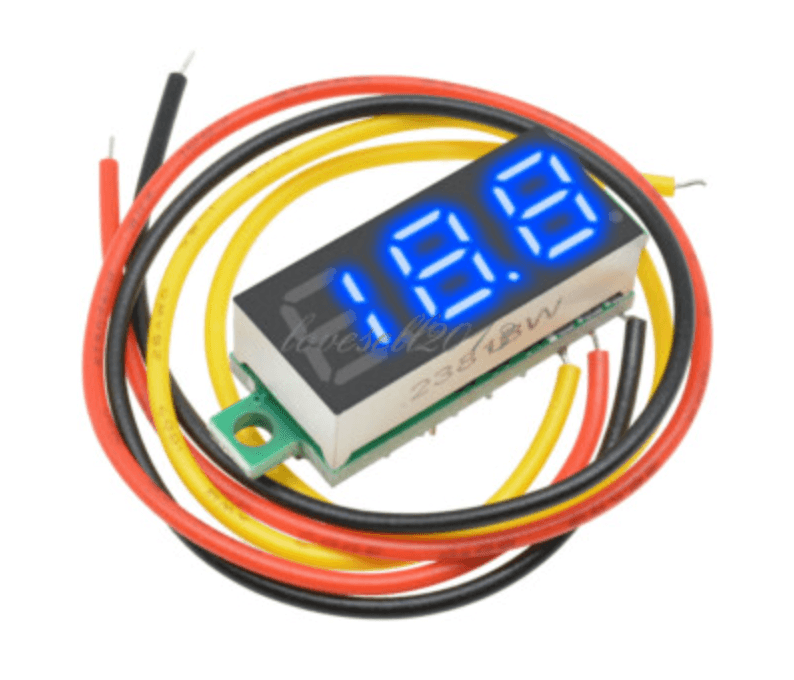

DC Digital Voltmeter 0-100V, Blue Display 0.28", 3% Accuracy, 4-40V Power Supply
Part number:
13411SKU: AA-009013411Compact DC digital voltmeter with a 0–100 V range and a blue three-digit 0.28" display. 3% accuracy and 4–40 V power supply. The three-wire connection lets the meter be powered directly from the measured voltage.
Key specifications
- Measured voltage range0 to 100 V.
- Display resolution0.1 V.
- Measurement accuracy3%.
- Power supply4 to 40 V.
- Display colorBlue.
- Display size3 characters, 0.28".
- Current consumption20 mA.
- Operating temperature-10...65 °C.
Purpose This digital voltmeter with a blue three-digit display measures DC voltage in the range from 0 to 100 V. Compact and accurate, it is suitable for a wide variety of electronic devices and systems. The ability to be powered directly from the measured voltage makes the meter versatile and convenient to install. Specifications Measured voltage range: 0 to 100 V Measurement accuracy: 3% Power supply voltage: 4–40 V Display size: 0.28" (3 characters) Current consumption: 20 mA Operating temperature: -10 to +65 °C Connection Black wire: negative, ground Red wire: power supply. Can be connected to the yellow wire to power the meter from the measured voltage Yellow wire: measured voltage
